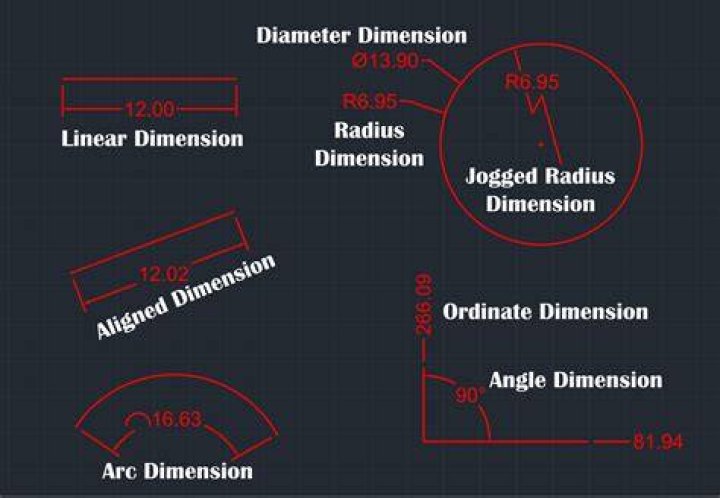

To Create an Ordinate Dimension
  1. Move the UCS origin to the datum.
  2. Click Annotate tab Dimensions panel Dimension. Find.
  3. At the prompt, enter o (Ordinate).
  4. If you do not want jogs in the ordinate leaders, turn on Ortho mode [F8].
  5. Specify a point for the feature location.
  6. Specify a leader endpoint.

In respect to this, how do you dimension in AutoCAD?

Create a Baseline Dimension

  1. Click Annotate tab Dimensions panel Baseline.
  2. If prompted, select the base dimension.
  3. Use an object snap to select the second extension line origin, or press Enter to select any dimension as the base dimension.
  4. Use an object snap to specify the next extension line origin.

Also, how do I make vertical dimensions in AutoCAD? Create Horizontal, Vertical, or Aligned Dimensions

  1. Click Annotate tab Dimensions panel Dimension.
  2. Select a line or specify the first and second extension line origin points.
  3. Move your pointing device to the desired position and orientation of the dimension.

Also to know is, what is a running dimension?

Angular Running Dimensions. Angular running dimensions are a set of dimensions measured from a zero-degree dimension in a drawing or sketch. Use angular running dimensions for arc or circle models. For example, you can create and modify angular running dimensions for a flange.

How do you do dimensions?

Listed dimensions are always inside dimensions.

  1. The first dimension to measure is length. Length is always the longest side of the box that has a flap.
  2. The next dimension is width. The width side also has a flap, but is always the side shorter than the length.
  3. Measure the height of the package.

Related Question Answers

What are dimensioning tools?

Using the Dimensioning tools. You can easily add formatted dimensions to documents with the Dimensioning tools. These tools can measure horizontal, vertical, oblique and perpendicular distances; measure diameter, radius, angle, area, and perimeter; and mark the centers of arcs and ovals.

What is the command for dimension in Autocad?

Creates multiple dimensions and types of dimensions with a single command. You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use.

What is the basic command of AutoCAD?

There are numerous command in autocad but the basic one are:
  • L+enter: for line.
  • C+enter: for circle.
  • Arc+enter: for arc.
  • El+enter: for ellipse.
  • Pol+enter: for polyline.
  • Fill+enter: to blank the filled portion of donut command.
  • Co+enter: to copy the object.
  • Mi+ enter: to make the mirror image.

How do you convert inches to mm in Autocad?

Solution:
  1. On the Dimension menu, click Style.
  2. In the Dimension Style Manager, click New.
  3. In the New Dimension Style dialog box, select a Name, Start With Style, and select Use For: All Dimensions.
  4. On the Primary Units tab, enter mm in the Suffix box and set the Scale Factor to 25.4 (there are 25.4 mm per inch).

How do you give angular dimensions in Solidworks?

To create an angular dimension between two lines:
  1. In an open sketch, click Smart Dimension. (Dimensions/Relations toolbar) or Tools > Dimensions > Smart.
  2. Click one line.
  3. Click the second line.
  4. Move the pointer to show the angular dimension preview.
  5. Set the value in the Modify box and click .
  6. Click to place the dimension.

How do I convert AutoCAD to inches?

Solution:
  1. Open the Dimension Style Manager using DIMSTY.
  2. Select the dimension style in use.
  3. Select Modify.
  4. Navigate to the Primary Units tab.
  5. Set Unit Format to Decimal.
  6. Set the Precision to be displayed. For whole inches, set the Precision to 0.
  7. In the Suffix box, add the inch symbol (").
  8. Press OK.

How do you set limits in AutoCAD?

To Set the Display Limits of the Grid
  1. At the Command prompt, enter limits.
  2. Enter the coordinates for a point at the lower-left corner of the grid limits.
  3. Enter the coordinates for a point at the upper-right corner of the grid limits.
  4. At the Command prompt, enter griddisplay, and enter a value of 0.

What is AutoCAD drawing?

AutoCAD is a computer-aided tool that allows many different types of designers to create diverse kinds of drawings and designs. This program helps designers create their designs much more quickly than by hand and offers many quick, easy, and useful features, such as copy and paste.

How do I draw a line in AutoCAD with dimensions?

A Specific Length
  1. Click Home tab > Draw panel > Line. Find.
  2. Specify the start point.
  3. Do one of the following to specify the length: Move the cursor to indicate the direction and angle, and enter the length, for example 6.5.
  4. Press the Spacebar or Enter.

How do I fix units in AutoCAD?

Solution:
  1. Open the drawing where it is needed to change the drawing units.
  2. Type -DWGUNITS and press Enter. The following checks will be performed in succession: Drawing units.
  3. Choose a drawing unit other than the current one on check 1.
  4. On check 7 and check 8, choose Yes to scale objects already in the drawing.

How do you rotate text size in Autocad 2019?

To Rotate Dimension Text
  1. Annotate tab Dimensions panel Text Angle. Find.
  2. Select the dimension to edit.
  3. Enter the new angle for the text.

How do you rotate text size in Autocad 2018?

To Rotate Dimension Text
  1. Click Drafting tab > Dimension panel > Dimension Text Edit drop-down > Angle .
  2. Select the dimension to edit.
  3. Enter the new angle for the text.

How do I change the scale in Autocad 2020?

Help
  1. Click Home tab Modify panel Scale. Find.
  2. Select the object to scale.
  3. Select the base point.
  4. Enter r (Reference).
  5. Select the first and second reference points, or enter a value for the reference length.

How do I make dimensions horizontal in Autocad?

Create Horizontal, Vertical, or Aligned Dimensions
  1. Click Annotate tab Dimensions panel Dimension.
  2. Select a line or specify the first and second extension line origin points.
  3. Move your pointing device to the desired position and orientation of the dimension.

How do I change the text dimension in Autocad?

To Rotate Dimension Text
  1. Annotate tab Dimensions panel Text Angle. Find.
  2. Select the dimension to edit.
  3. Enter the new angle for the text.

How do you rotate annotation text in AutoCAD?

To Rotate Dimension Text
  1. Annotate tab Dimensions panel Text Angle. Find.
  2. Select the dimension to edit.
  3. Enter the new angle for the text.
