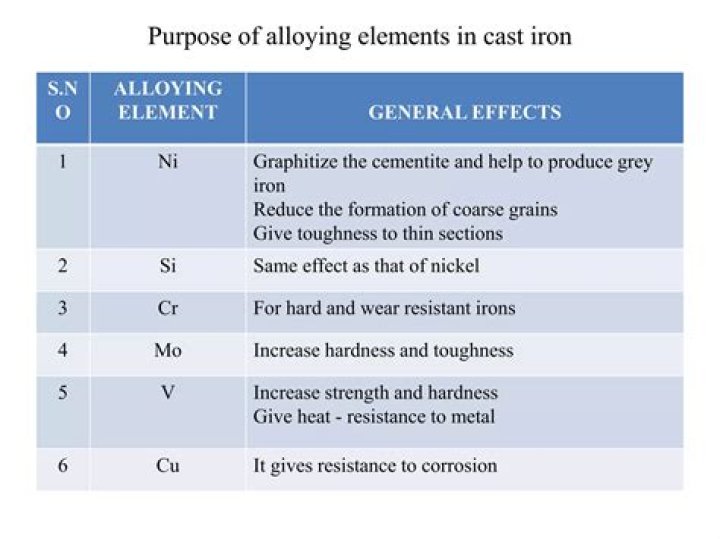

Alloying elements increase the strength of cast irons through their effect on the matrix. Common alloy elements include manganese, copper, nickel, molybdenum, and chromium, elements added primarily to control the matrix microstructure, having only a small effect upon the solidification microstructure.

Besides, what are the effects of alloying elements on steel?

Increases strength, hardness, hardenability, and toughness, as well as creep resistance and strength at elevated temperatures. It improves machinability and resistance to corrosion and it intensifies the effects of other alloying elements. In hot-work steels and high speed steels, it increases red-hardness properties.

Beside above, what is the effect of silicon on the structure of cast iron? A minimum amount of silicon is necessary to improve fluidity of the melt and to produce a fluid slag, but of equal importance is its effect on as-cast hardness. Increased levels of silicon, in the range of 1 to 1.5%, have been found to increase the amount of martensite and the resulting hardness.

Beside this, what is the effect of phosphorus on cast iron?

Increasing phosphorus from 0.45 to 2.58% decreases the ledeburite eutectic from 1139.7 to 1102.5 °C temperature of cast iron. Increasing phosphorus from 0.45 to 2.58% increases hardness from 215.43 to 249.38 HB. Increasing phosphorus from 0.45 to 2.58% decreases tensile strength from 297.5 to 184.1 MPa.

What is the chemical composition of cast iron?

Most cast irons have a chemical composition of 2.5–4.0% carbon, 1–3% silicon, and the remainder iron. Grey cast iron has less tensile strength and shock resistance than steel, but its compressive strength is comparable to low- and medium-carbon steel.

Related Question Answers

What are the effects of alloying elements?

It increases tensile strength, hardness, and resistance to wear and abrasion. Alloying elements improve its physical properties of steel. Hardness,tensile strength,yeild strength etc etc are improved due to its higher hardenability due to the addition of alloying elements.

What is the difference between steel and cast iron?

The main difference between the two elements is that steel is produced from iron ore and scrap metals, and is called an alloy of iron, with controlled carbon . Whereas, around 4% of carbon in iron makes it cast iron, and less than 2% of carbon makes it steel.

Why nickel is added to steel?

It increases hardenability and elevated temperature strength. In austenitic stainless steels it improves pitting corrosion resistance. Nickel - is added to steels to increase hardenability. It often improves the toughness and Page 2 ductility of the steel, even with the increased strength and hardness it brings.

What is alloying of steel?

Alloy steels are made by combining carbon steel with one or several alloying elements, such as manganese, silicon, nickel, titanium, copper, chromium and aluminum. These metals are added to produce specific properties that are not found in regular carbon steel.

What does vanadium do in steel?

Vanadium is used in nitriding, heat resisting, tool and spring steels together with other alloying elements. It is also being utilized in ferrite/pearlite microalloy steels to increase hardness through carbonitride precipitation strengthening of the matrix.

Why is cobalt added to steel?

Cobalt is added to high speed steels to improve hot hardness. It is found in both Mo and tungsten (W) grades of tool steels. The addition of Co to cold work die steels (as in steels with 3 % Co) increases hardness and promotes greater wear resistance than grades where it is not used.

What are austenite stabilizers?

Austenite stabilizers are the element which stabilise austenite by increasing the austenitic area in iron carbon diagram by decreasing eutectoid composition and decreasing the eutectoid temperature. Mn and Ni are common austenite stabilisers.

Why silicon is added in steel?

Silicon increases strength and hardness but to a lesser extent than manganese. It is one of the principal deoxidizers used in the making of steels to improve soundness, i.e. to be free from defects, decays or damages. Silicon is present in all steels to a certain extent.

What are the four types of cast iron?

There are four basic types of cast iron: ductile, malleable, white and grey. There are significant differences in the composition and use of white and grey cast iron. Grey Cast Iron is one of the type of Cast iron. The Grey colour in iron is due to the fact that the carbon is Present in the form of free Graphite.

What is the effect of silicon in cast iron?

Cast iron's properties are changed by adding various alloying elements, or alloyants. Next to carbon, silicon is the most important alloyant because it forces carbon out of solution. A low percentage of silicon allows carbon to remain in solution forming iron carbide and the production of white cast iron.

Why silicon is used in cast iron?

Silicon is important for making gray iron as silicon is a graphite stabilizing element in cast iron, which means it helps the alloy produce graphite instead of iron carbides; at 3% silicon almost no carbon is held in chemical form as iron carbide.

What are the properties of cast iron?

A few common mechanical properties for cast iron include:
  • Hardness – material's resistance to abrasion and indentation.
  • Toughness – material's ability to absorb energy.
  • Ductility – material's ability to deform without fracture.
  • Elasticity – material's ability to return to its original dimensions after it has been deformed.

What is Steadite?

Definition of steadite. : a eutectic of iron phosphide Fe3P and iron that occurs as a microconstituent of high-phosphorus cast iron.

Which type of cast iron is the toughest?

While the hardness and strength of steel almost always increase as carbon content rises, in the case of gray cast iron the strongest, hardest grades have less carbon than some of the lower-strength, less expensive grades. Gray iron is usually cast in sand molds, and allowed to cool normally in the mold.

Where on a motor vehicle would cast iron be used?

With its relatively low melting point, good fluidity, castability, excellent machinability, resistance to deformation and wear resistance, cast irons have become an engineering material with a wide range of applications and are used in pipes, machines and automotive industry parts, such as cylinder heads, cylinder

Where is cast iron used?

Applications of cast iron
  • It is used in making pipes, to carry suitable fluids.
  • It is used in making different machines.
  • It is used in making automotive parts.
  • It is used in making pots pans and utensils.
  • It is used in making anchor for ships.

Is Cast Iron expensive?

Enameled cast iron is much more expensive than a plain cast iron skillet, sometimes prohibitively so. New technology produces new advances in cookware but it's still true that nothing conducts heat as reliably as cast iron. But there are advanced, light-weight, non-stick pans coming on to the market all the time.

Does cast iron crack?

But after so much of use of the cast iron skillet, it may crack. The another reason of crack is the carbon absorbed in the surface of cast iron when the food you fry on it and burnt. This increases the surface hardness of the cast iron and the brittleness too. This may proceed to get a crack.

What are the main properties of white cast iron?

White cast iron has high compressive strength and retains good hardness and strength at higher temperature. The presence of different carbides, depending on the alloy content, makes white cast irons extremely hard and abrasion resistant but very brittle.

What is chilled cast iron?

CHILLED CAST IRON ? Chilled-Iron castings are made by casting the molten metal against a metal chiller, resulting in a surface of white cast iron. ? This hard, abrasion-resistant white-iron surface or case is backed up by a softer gray-iron core.

How do you increase tensile strength of cast iron?

Tensile strength as well as hardness increases as the proportion of the copper increases. B. Effect of Molybdenum on Gray Cast Iron Molybdenum [4, 7, 8] is a carbide stabilizing element. Molybdenun is used for strengthening and hardening iron because of austenite transformation in fine pearlite to bainite.

What is GREY cast iron used for?

It is the most common cast iron and the most widely used cast material based on weight. It is used for housings where the stiffness of the component is more important than its tensile strength, such as internal combustion engine cylinder blocks, pump housings, valve bodies, electrical boxes, and decorative castings.

Is Cast iron rust proof?

Yes it does, the speed that it rusts at is relative to the environment that it is and heat/humidity. As in for example a skillet pan, Good quality thick cast iron won't deep rust quickly, although rust is permeable, as the rust itself tends to protect the surface below it. Some iron can rust right before your eyes.

What is difference between cast steel and cast iron?

The main difference between the two elements is that steel is produced from iron ore and scrap metals, and is called an alloy of iron, with controlled carbon . Whereas, around 4% of carbon in iron makes it cast iron, and less than 2% of carbon makes it steel.

What are the types of cast iron?

There are four basic types of cast iron: ductile, malleable, white and grey. There are significant differences in the composition and use of white and grey cast iron. Grey Cast Iron is one of the type of Cast iron.

Why is it called cast iron?

Cast iron is a finished product. Pig iron is the first step of processing as a result of smelting the raw ore. The name comes from the appearance of the molds that used to be used to cast the iron into ingots.

What is the difference between SG iron and cast iron?

Difference Between Ductile Iron and Cast Iron. Ductile iron can be bent without breaking, whereas cast iron is brittle and breaks when bent. As ductile iron can be bent, it can be made into different shapes and forms. Ductile iron also consists of nodular graphite, which gives it flexibility.

How is cast iron formed?

Cast iron begins its life as pig iron, which is remelted and often combined with large amounts of scrap iron and sometimes with steel. Contaminants are removed from the melted pig iron, and the iron, once melted, is then cast. Casting is the process of pouring the iron into a mold thus giving it a shape.

Is ceramic better than cast iron?

The reason is that cast iron cookware are rather thick and heavy with significant heat capacity. As such, they heat up slow and cool down slow. They are not optimal for fast cooking like pan frying and saute. Ceramic and clay cookware are even slower than cast iron cookware.

Is Cast Iron good for health?

While cast iron doesn't leach chemicals, it can leach some iron into your food and that's a good thing. In fact, 10% of American women are iron-deficient. Cooking food, especially something acidic like tomato sauce, in cast iron can increase iron content by as much as 20 times.
